Hull
Anodes (Medium to Large Vessels) |
|
| APPLICATIONS; Hulls, Sea Tanks, Bilges,
Bottom Plates, Keels, Rudders, Shaft Tunnels, Ballast Tanks, Cargo tanks,
Structures. |
 |
| PART No. |
Weight (Lbs) |
A |
B |
C |
MOUNTING |
|

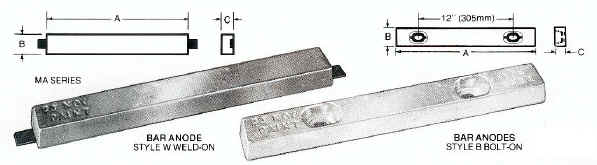

BAR ANODES
|
| P5B2 |
23.5 |
24.0" |
3.0" |
1.25" |
Bolt-On |
| P7B2 |
47 |
24.0" |
4.0" |
2.0" |
Bolt-On |
| ZHS-50 |
50 |
24.0" |
4.0" |
2.0" |
Weld-On |
| ZMA 2204 |
47.5 |
20.0" |
4.0" |
2.0" |
Weld-On |
| ZMA 2244 |
57 |
24.0" |
4.0" |
2.0" |
Weld-On |
| ZMA 3305 |
71.5 |
30.0" |
5.0" |
3.0" |
Weld-On |
| ZMA 3365 |
88 |
36.0" |
5.0" |
3.0" |
Weld-On |
| ZMA 4545 |
207 |
54.5" |
4.5" |
3.75" |
Weld-On |
|
 |

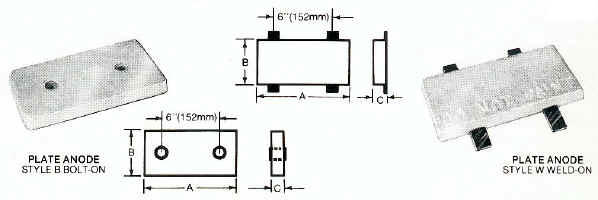

| PART NO. |
Weight (Lbs) |
A |
B |
C |
MOUNTING |
|
BAR ANODES
|
| ZHC-2 |
2.5 |
5.75" |
2.75" |
0.75" |
Bolt-On |
| ZHC-23 |
23 |
12.0" |
6.0" |
1.25" |
Bolt-On |
| ZHS-23 |
23.5 |
12.0" |
6.0" |
1.25" |
Weld-On |
| ZHC-47 |
47 |
12.0" |
6.0" |
2.5" |
Bolt-On |
| ZHS-47 |
47 |
12.0" |
6.0" |
2.5" |
Weld-On |
|
|
|
